Quality
|
Price
|
|
100-499
|
$52.49
|
|
500-1000
|
$51.19
|
|
≥1000
|
$49.98
|

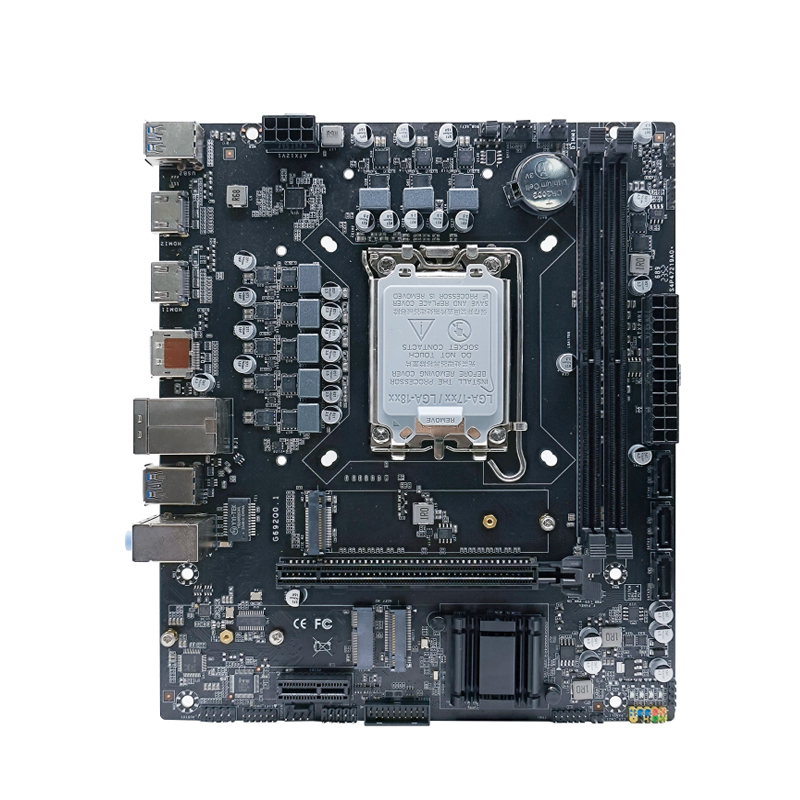

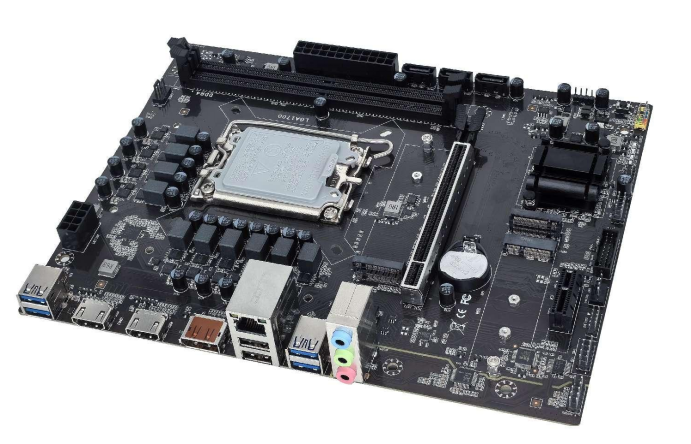

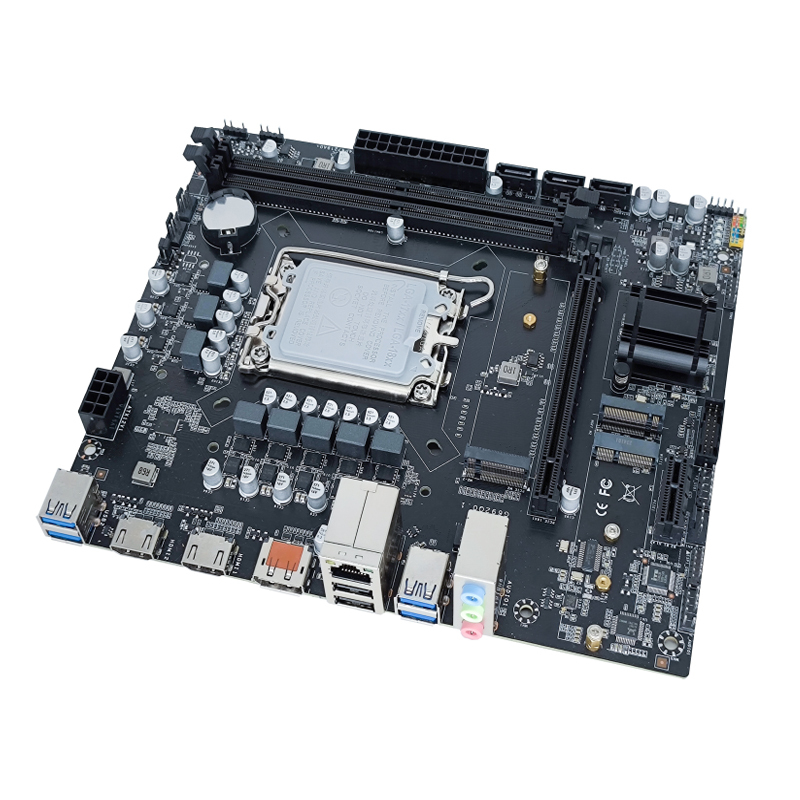

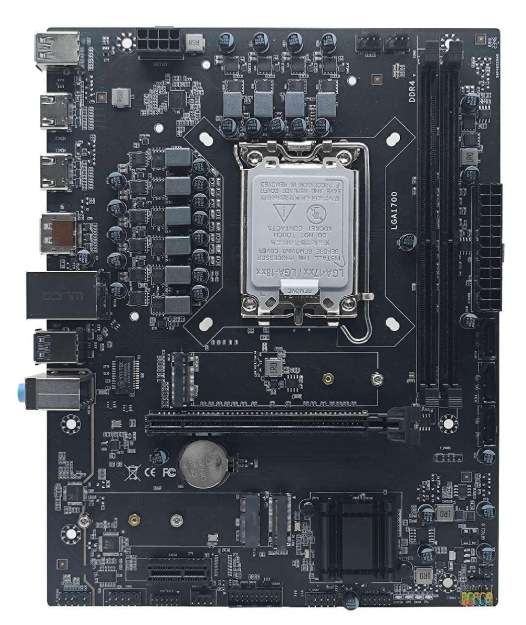

| Model Name | H610 |
| Platform | INTEL Socket 1700 |
| Chipset | Intel H610 Express Chipset |
| CPU Supports | Supports 12th (SKYlake). CPU (LG1700) |
| FSB | 2400/2666/3200 memory |
| Memory | Dual Channel DDR4 2400/2666/3200 (2 slots) |
| Dimm | 2 x Memory Slots (Max. capacity of system memory 64GB) |
| Onboard Graphics | |
| PCI / PCI-E Slots | 1 x PCI Express 4.0x16 slot, 1 x PCI Express 4.0x1 slot |
| SATA | 3x SATA 3.0(6GB/s) ports |
| Expansion Slot | 1xM.2 wifi,1xM.2 sata |
| 1xNVME-M.2 connector | |
| IDE | N/A |
| Audio | Realtek ALC 6-channal HD Audio Codec onboard |
| LAN | Realtek 100/1000 Mbps LAN onboard |

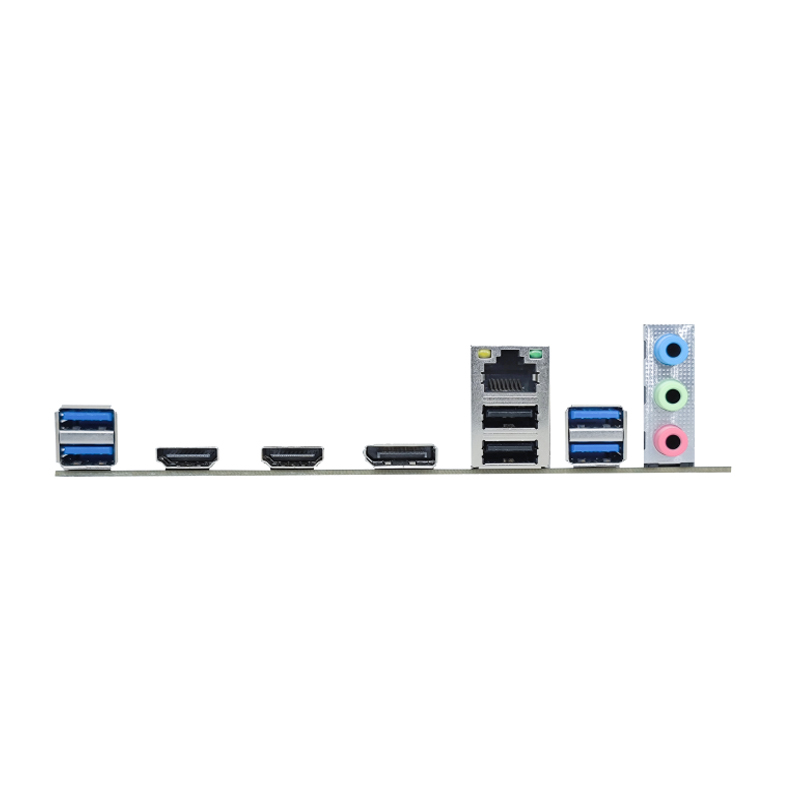

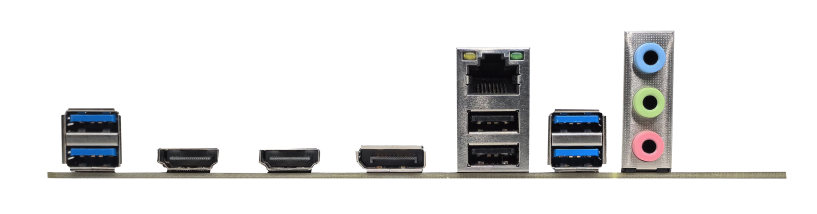

| Back Panel I/Os | 1xP/S2 keyboard port,1xPS/2 mouse port |
| 4xUSB2.0, 2XUSB3.0 | |
| 1xDP Port | |
| 2xHDMI port | |
| 1xRJ45 port | |
| 1x3-in-1 Audio port(line in/line out/MIC in) | |
| ON-Board Pinheaders / Connectors | 1x24-pin ATX power connector |
| 1x8-pin ATX 12V power connector | |
| 2xUSB connector, can support 2*USB2.0 & 2*USB3.0 | |
| 1xF-AUDIO connector | |
| 1xF-PANEL connector | |
| 1xF-SPEAKER connector | |
| 2x FAN connector | |
| 1x LPC-DEBUG connector | |
| Dimension | Micro-ATX architecture(18.5*24cm) |
