Quality
|
Price
|
|
100-499
|
$50.49
|
|
500-999
|
$49.49
|
|
≥1000
|
$48.53
|

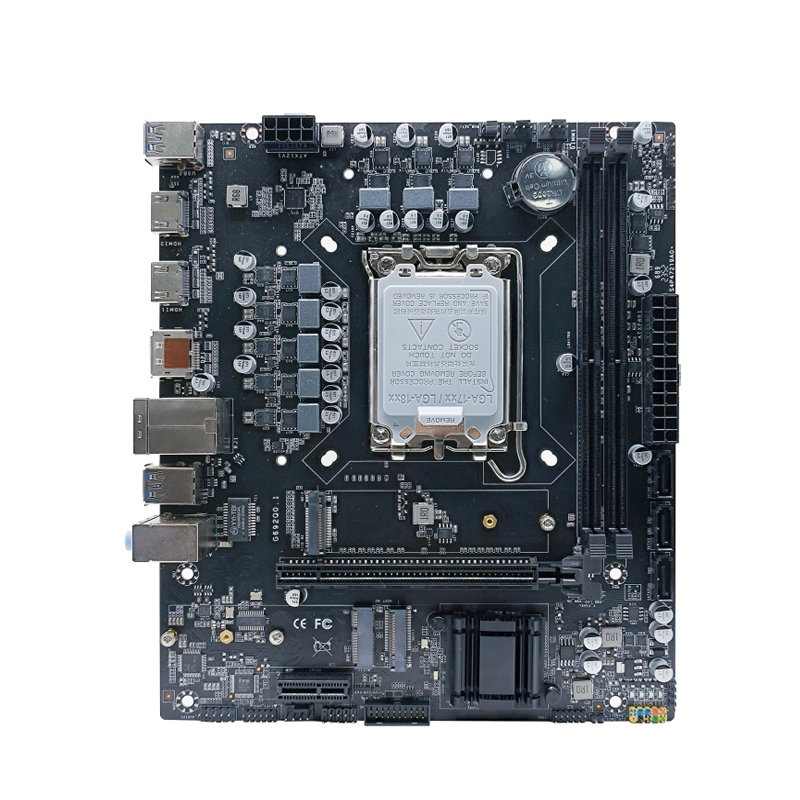

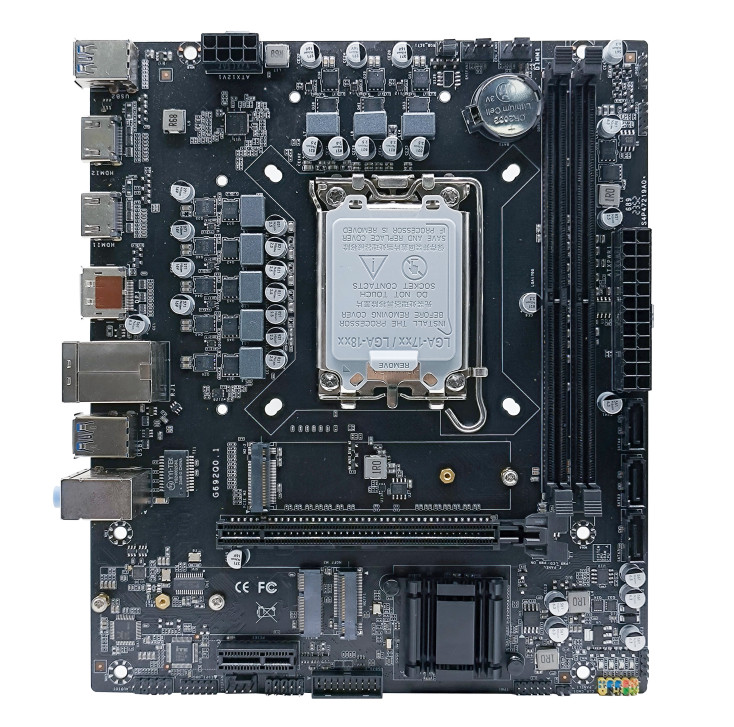

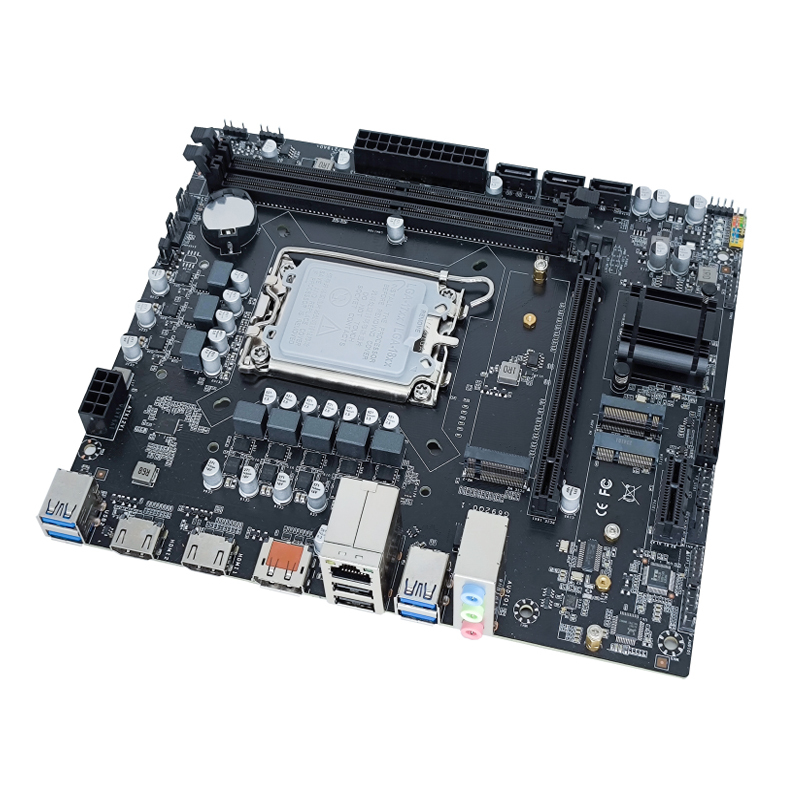

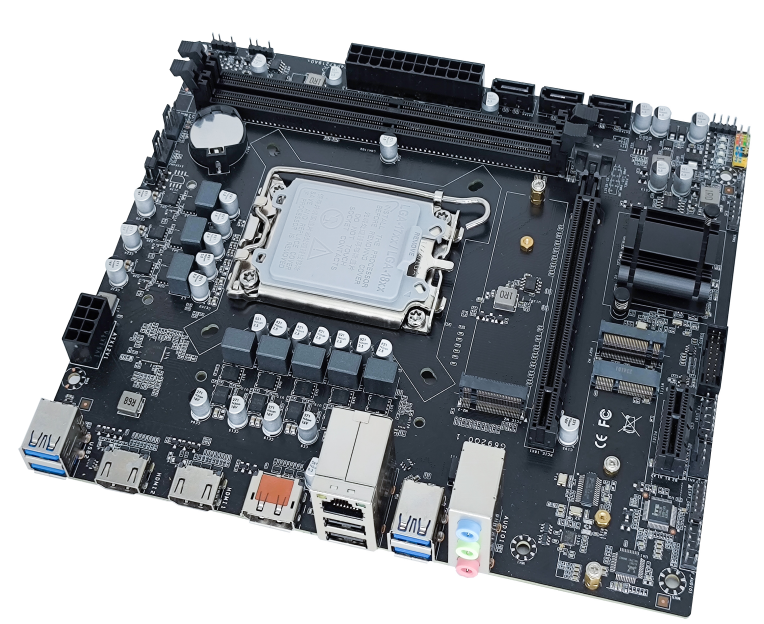

| Model Name | H610 |
| CPU | Supports 12/13/14th CPU(LGA1700) |
| Chipset | Intel H610 ® Express Chipset |
| Memory | 2*288-pin DDR4 SDRAM slots Memory up to 64 GB Supports dual channel DDR4 3200/2933/2800/2666/2400/2133MHz memory |

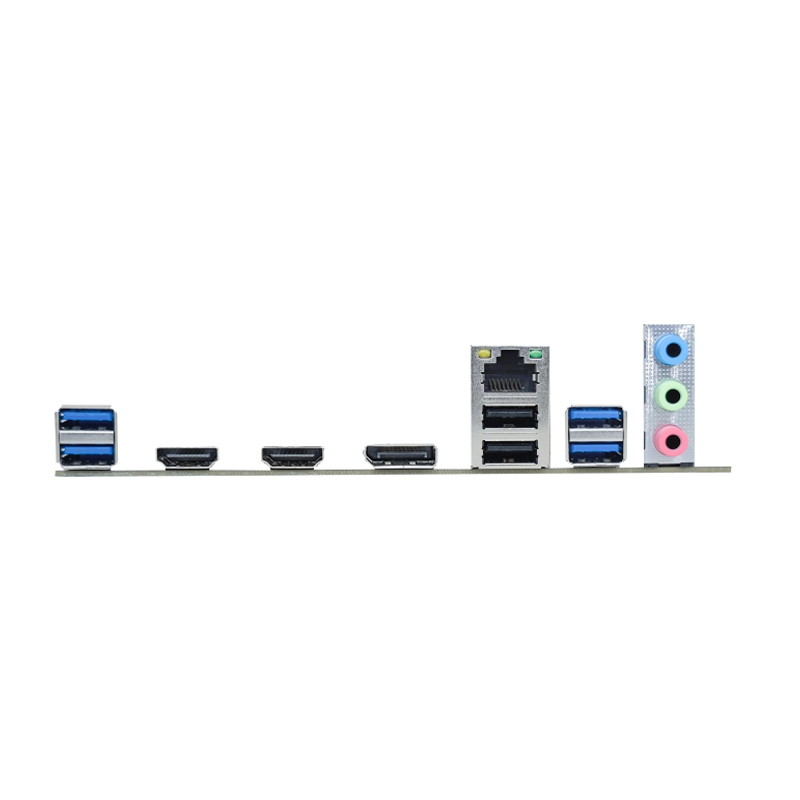

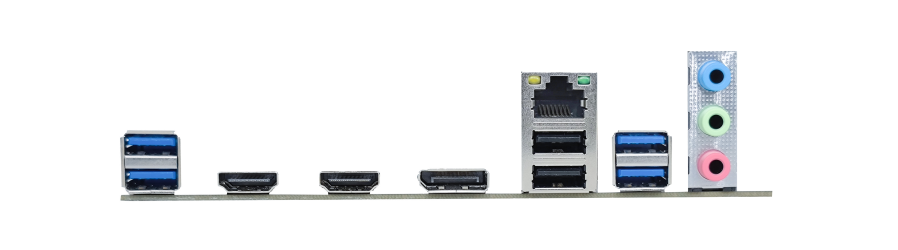

| I/O interface | 2xUSB3.0 4x USB2.0 1x DPport 2x HDMI port 1x RJ45 port 1x 3-in-1 Audio port(line In/Line Out/MIC IN) |
| Onboard interface |
1 x 24-pin ATX power connector 1 x 8-pin ATX 12V power connector 1x USB2.0 connector,can support 2*USB 2.0 1x USB3.0 connector,can support 2*USB 3.0 1x F AUDIO connector 2 x JRGB connector 1x ESPI_DBG connector 1xTPM1 connector 1x F PANEL connector 1x SPEAK1 connector 3x FAN connector 1x CLR_CMOS1connector 3 x serial SATA/6GB/S connector port |
| Integrated sound |
with 6-channel HD Audio Codec onboard provides front audio interface; provides front stereo mic interface; |
| Integrated lan | with 10/100/1000Mbps LAN onboard |
| Expansion slot |
1x PCI Express x16slot 1x PCI Express x1 slot 1xNVME-M.2connector 1 x SATA M.2 connector 1x WIFI connector |
| Dimension | Micro-ATX architecture(18*21.4 cm) |
