Quality
|
Price
|
|
100-499
|
$58.52
|
|
500-1000
|
$57.49
|
|
≥1000
|
$58.18
|

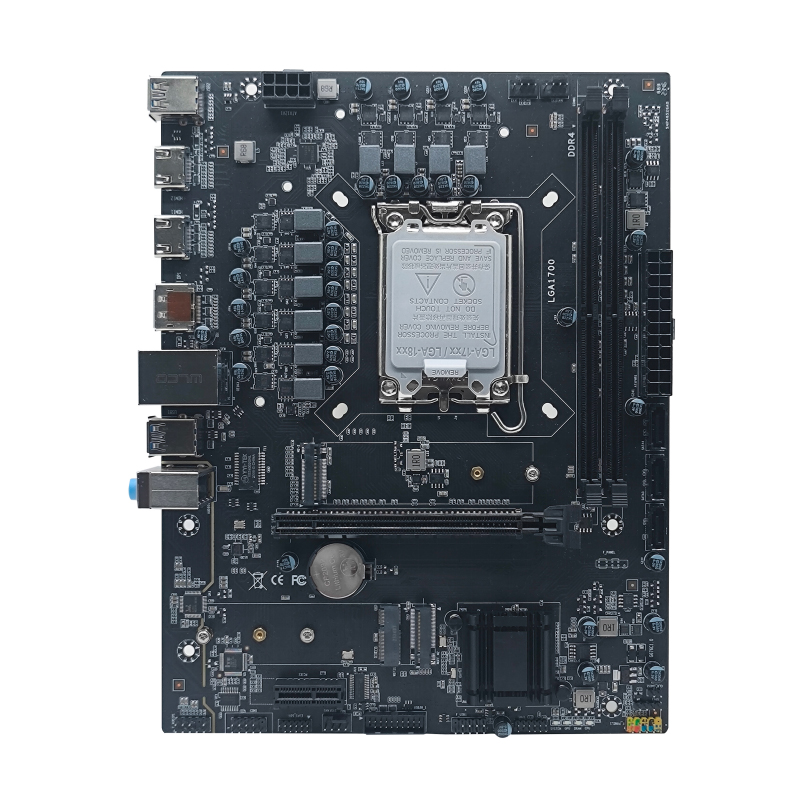

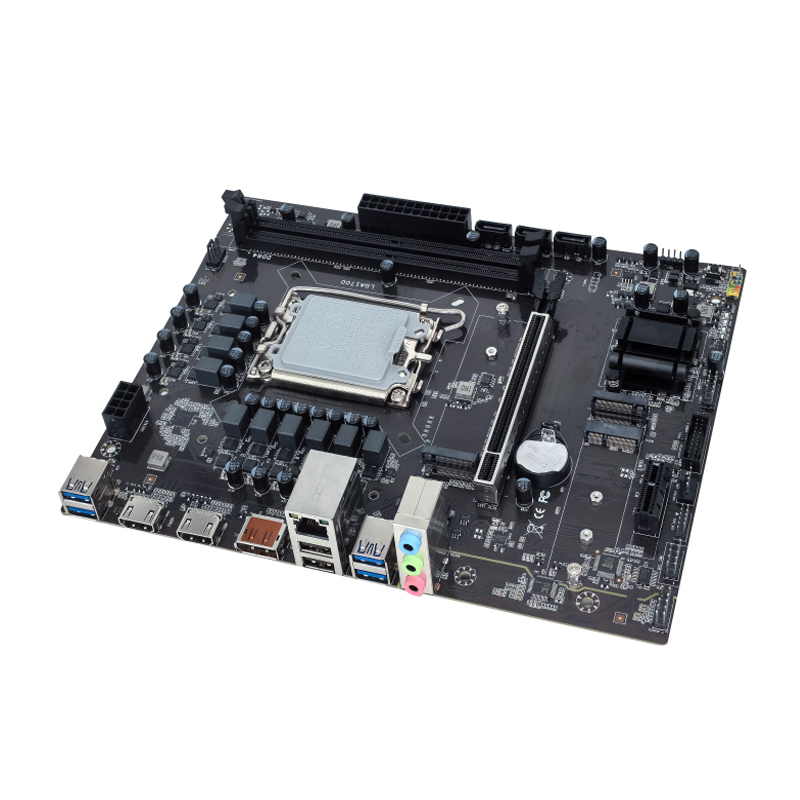

| Model Name | B760 |
| CPU | Supports 12/13/14th CPU (LGA1700) |
| Chipset | Intel B760 ®Express Chipset |
| Memory | 2*288-pin DDR4 SDRAM slots Memory up to 64 GB Supports dual channel DDR4 3200/2933/2800/2666/2400/2133MHz memory |

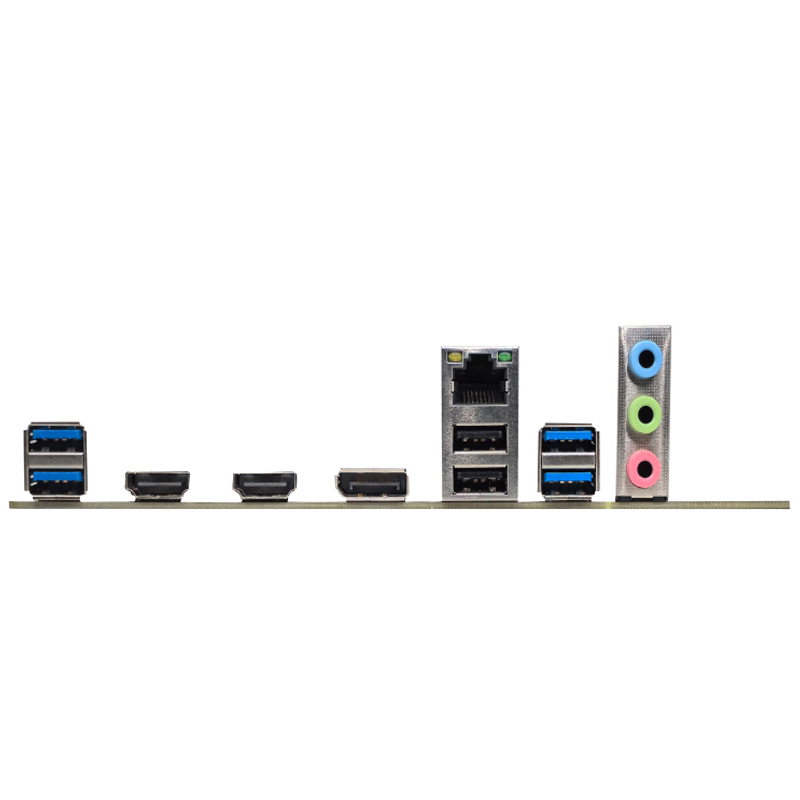

| I/O interface | 4xUSB3.0 2xUSB2.0 1xDPport 2xHDMI port 1xRJ45 port 1x 3-in-1 Audio port(line In/Line Out/MIC IN) |
| Onboard interface |
1x24-pin ATX power connector 1x8-pin ATX 12V power connector 1 xUSB2.0 connector,can support 2*USB 2.0 1 xUSB3.0 connector,can support 2*USB 3.0 1xF_AUDIO connector 1xCOM1 connector 1x ESPI_DEG connector 1xTPM1 connector 1xF_PANEL connector 1xSPEAK1 connector 3xFAN connector 1xCLR_CMOS1 connector 3 x serial SATA/6GB/S connector port |
| Integrated sound |
with 6-channel HD Audio Codec onboard provides front audio interface; provides front stereo mic interface; |
| Integrated lan | with 10/100/1000Mbps LAN onboard |
| Expansion slot |
1xPCI Express x16 slot 1xPCI Express x1 slot 1xNVME-M.2 connector 1x SATA M.2 connector 1x WIFI connector |
| Dimension | Micro-ATX architecture(18.5*24cm) |
