Quality
|
Price
|
|
100-499
|
$33.9
|
|
500-999
|
$32.9
|
|
≥1000
|
$32.49
|

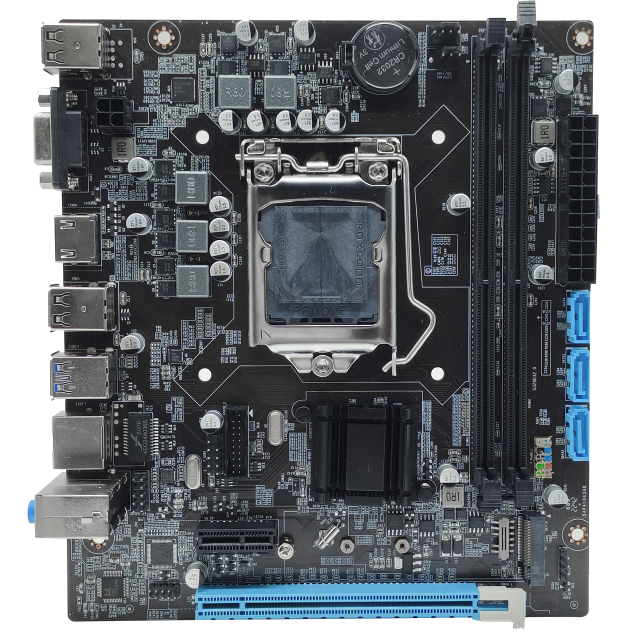

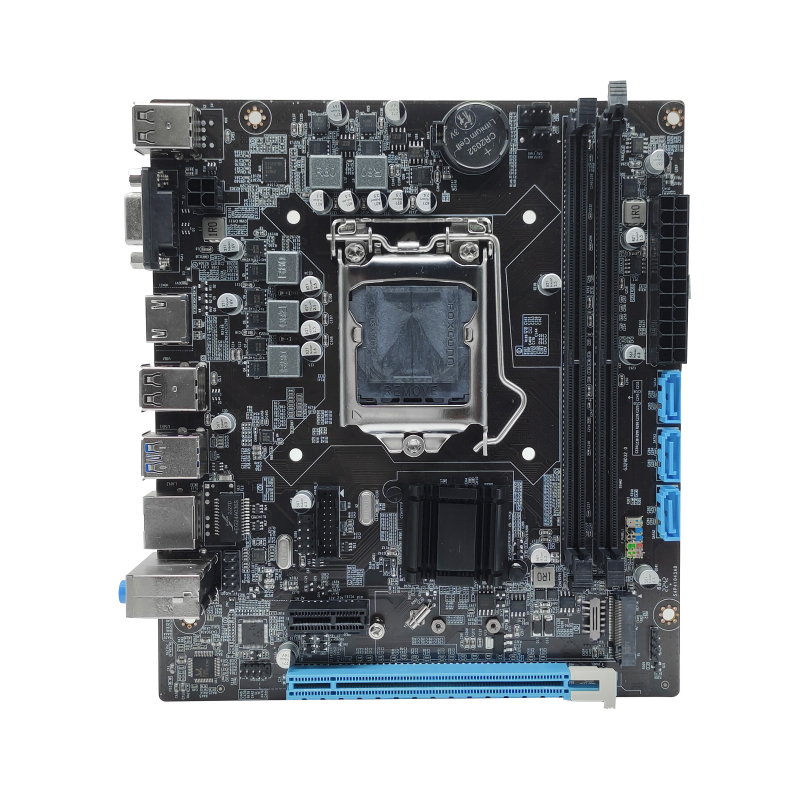

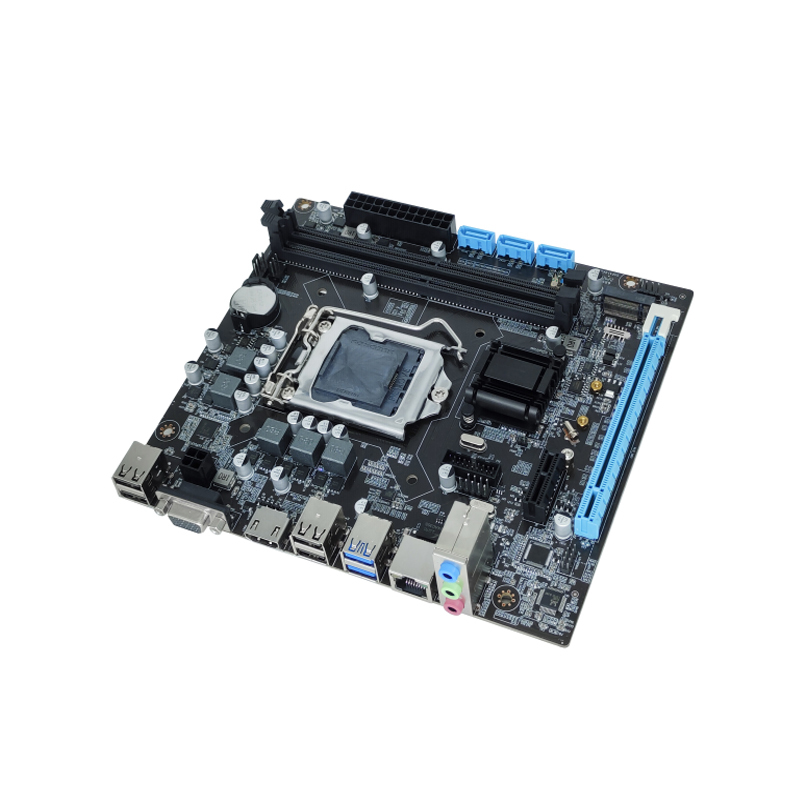

| H110 | |
| CPU | Supports 6/7/8th(SKYlake). Intel 14nm CPUs （LGA1151） |
| Chipset | Intel H110 Express Chipset |
| Memory | 2*240-pin DDR4 SDRAM slots |
| Memory up to 32GB | |
| Supports dual channal DDR4 1600/1866/2133/2400 MHZ | |

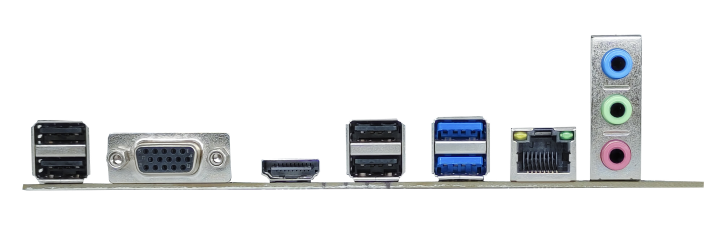

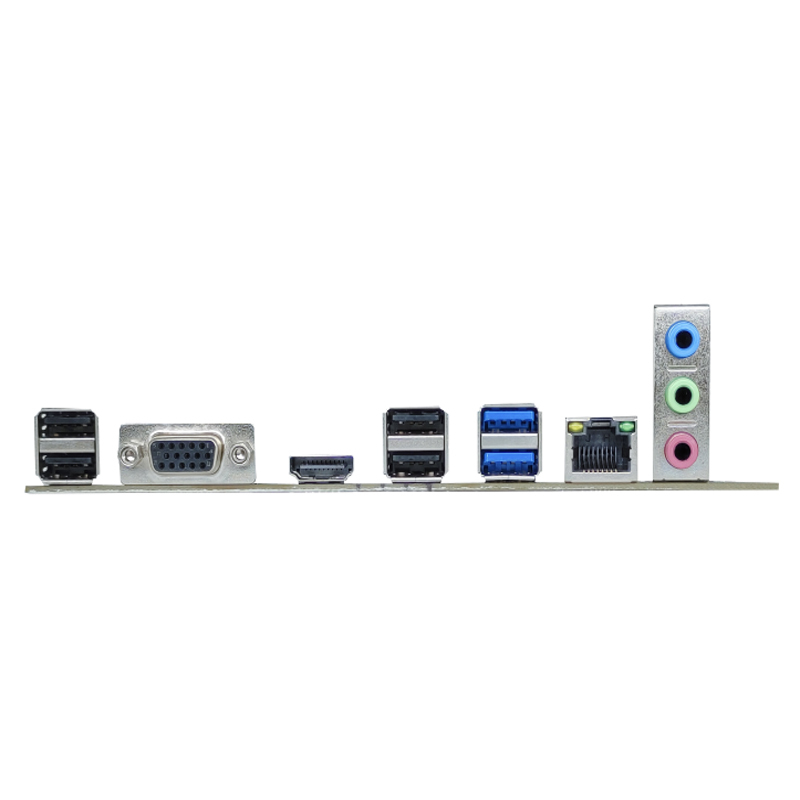

| I/O interface | 4xUSB2.0 |
| 2xUSB 3.0 | |
| 1x VGA port | |
| 1x HDMI port | |
| 1x RJ45 port | |
| 1x 3-in-1 Audio port(line in/line out/MIC in) | |
| Onboard interface |
1x 24-pin ATX power connector |
| 1x 4-pin ATX 12V power connector | |
| 2x USB connector, can support 2*USB 2.0 & 2*USB 3.0 | |
| 1x F-AUDIO connector | |
| 1x F-PANEL connector | |
| 1x F-SPEAKER connector | |
| 1x FAN connector | |
| 1x LPC-DEBUG connector | |
| Integrated sound |
Realtek ALC 6-channal HD Audio Codec onboard |
| provides front audio interface | |
| provides front stereo mic interface | |
| Storage | 3 x SATA 3.0 (6GB/s) ports |
| Integrated lan | Realtek 10/100 Mbps LAN onboard |
| Expansion slot |
1x PCI Express x16 slot,1x PCI Express x1 slot |
| 1x M.2 Nvme/NGFF slot | |
| Dimension | Micro-ATX architecture(17*19 cm) |
